Elevator Rope Brake With ACOP

Payment Type: T/T
Incoterm: CFR,CIF
Min. Order: 10 Piece/Pieces
Delivery Time: 20 Days

Basic Info

Model No.: RGR-JD-5A | RGR-JD-5AY

Reference Standard: EN81

Additional Info

Packaging: Export Packing

Productivity: 500,000pcs

Brand: CEP

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Supply Ability: Quantity Production

Certificate: CE, Gost-R, SASO, VOC, KTL, UL, CSA

HS Code: 8431310090

Port: Ningbo,Shanghai

Product Description

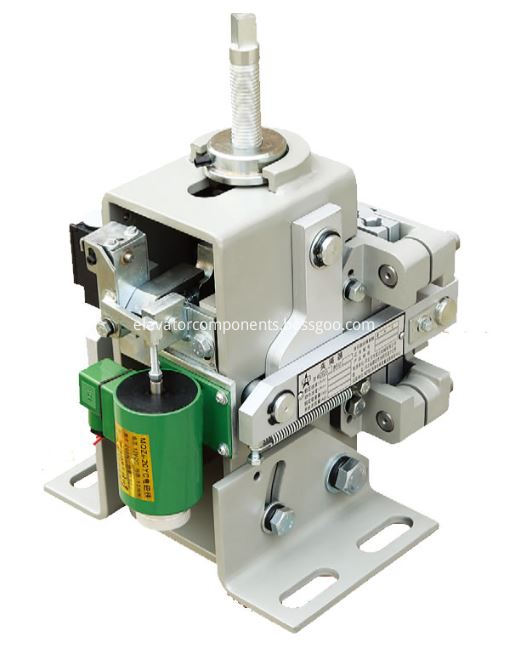

Elevator Rope Gripper Elevator Rope Brake
It's an ACOP(Ascending Car Overspeed Protection) device of elevator cabin

Elevator Rope Gripper Elevator Rope Brake

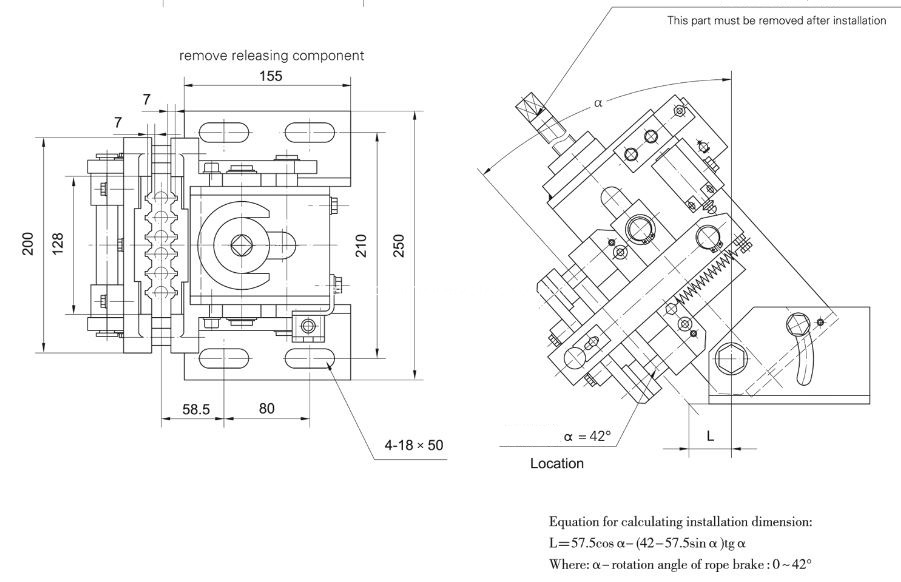

Installation Angle can be adjusted within 0 degree42degree

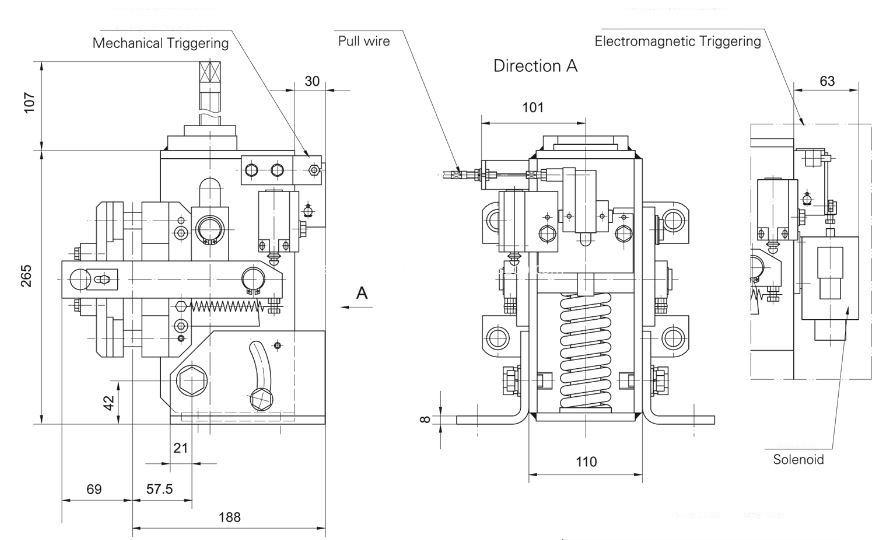

Triggering Mechanism: Mechanical Trigger Or Electrical Trigger



Mechanical rope brake:

1.The braking wire travel:≤8mm

2.Releasing force:RGR-JD-5A:50120N;RGR-JD-5AY:2050N

3.Tripping distance of the governor:15-25mm

4.Force of the braking wire of governor:≥240N


Electromagnetic rope brake

1.Rated Voltage:DC12V

2.Power:≤50W

3.Current:≤3A

Elevator Rope Gripper | Elevator Rope Brake

Part No.

RGR-JD-5A | RGR-JD-5AY



Roping

1:1

2:1

Elevator Speed

0.25~5.0m/s

0.25~2.5m/s

Elevator Capacity

3001250kg

6002500kg

P+Q

9505715kg

190011430kg


We carry high quality rope gripper for all major elevator and escalator brands

for OTIS Elevators, ThyssenKrupp Elevators, Schindler Elevators, KONE Elevators, Mitsubishi Elevators, Fujitec Elevators, Hitachi Elevators, Toshiba Elevators, Fuji Elevators, Express Elevators, Sigma Elevators, LG Elevators, Hyundai Elevators, BLT Elevators, CANNY Elevators, SJEC Elevators, KOYO Elevators

Passenger Elevator Rope Brake

 Passenger Elevator Rope Gripper
