Elevator Air Conditioner NO Water Drips Design

Payment Type: T/T,Western Union
Incoterm: CFR,CIF,EXW,CPT
Min. Order: 2 Piece/Pieces
Delivery Time: 10 Days

Basic Info

Model No.: NO Water Drips Design

NO Water Drips Design: YES

Easliy Install & Dissembling: YES

Energy Saving: YES

Low Noise Operation: YES

Special Model AC110V/60Hz: As An Option At Extra Cost

With CE Approval: YES

Refrigerant: R410A

Voltage/Frequency: AC220-230V ~ 60Hz

Directed Mainly For: Taiwan, Japan, Brazil, Philippines, USA

Additional Info

Packaging: Export Packing Plywood Case

Productivity: 100,000pcs

Brand: Powered by CEP Elevator Products

Transportation: Ocean,Land,Air,Courier Service

Place of Origin: Made in CHINA

Supply Ability: Quantity Production

Certificate: EN81, CE, Gost-R, SASO, VOC, KTL, UL, CSA

HS Code: 8415101000

Port: Ningbo,Shanghai

Product Description

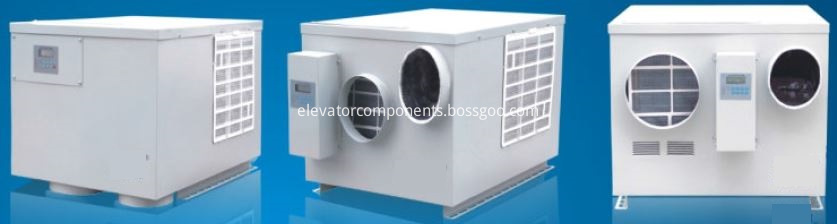

60Hz Elevator Air Conditioner Refrigerant R410A

NO Water Drips Design


60Hz Elevator Air Conditioner Refrigerant R410A



Part No.

ACR-HH-26Z

ACR-HH-D26Z

ACR-HH-26QZ

ACR-HH-D26QZ

ACR-HH-35QZ

ACR-HH-D35QZ

Rated Cooling Capacity(W)

2600

2600

2600

2600

3500

3500

Rated Heating Capacity(W)

/

2200

/

2200

/

2200

Air Flow (High/Low, m3/h )

430/340

430/340

430/340

430/340

550/440

550/440

Rated Cooling Input Current(A)

4.3

4.3

4.3

4.3

5.4

5.4

Rated Heating Input Current(A)

/

10

/

10

/

10.3

Rated Cooling Input Power(W)

950

950

950

950

1220

1220

Rated Heating Input Power(W)

/

2200

/

2200

/

2255

Noise dB (A)

53

53

55

Voltage/Frequency

220-230V~60Hz

Refrigerant

R410A

Water Proof Level

IPX4

Insulated Voltage Grade

I Grade

Compressor Protection

Overheat protection; Over current protection; Delay startup protection

Control Mode

Standard: Program control (automatically ) +infrared remote control (Manually)

Remote control (automatically ) +infrared remote control (Manually) as an option at extra cost

Dimensions (L×W×H)mm

615×455×435

615×455×435

545×455×435

545×455×435

640×570×510

Weight(kg)

39.5

40

38.5

39

57

57.5

For Elevator Load Capacity(kg)

≤1350

≤1350

≤1350

≤1350

1350-1600

Air Out, Air Return

from bottom ,to bottom

from front, to front

from front ,to front



60Hz Elevator Air Conditioner Refrigerant R410A
