Elevator PM Gearless Machine Rearmounted Cooling Fans

Payment Type: L/C,T/T
Incoterm: CFR,CIF
Min. Order: 1 Piece/Pieces
Delivery Time: 20 Days

Basic Info

Model No.: 2:1 800kg 1000kg

Type: Driving System

Speed: 1.00-2.00m/s, 1m/s 1.75m/s

Drive Mode: AC

Control Type: Microcomputer Frequency Control

Roping: 2:1

Capacity: 800kg 1000kg

Traction Sheave Dia.: 400mm

Rope: 5*ø10mm 6*ø10mm

Pitch: 15mm

Other Groove Number: On Request

Voltage: 3 Phase AC340V

MRL & MR Application: YES

With Rearmounted Cooling Fans: YES

Additional Info

Packaging: Export Packing

Brand: Customer Name

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Supply Ability: Quantity Production

Certificate: CE, Gost-R, SASO, VOC, KTL, UL, CSA

Product Description

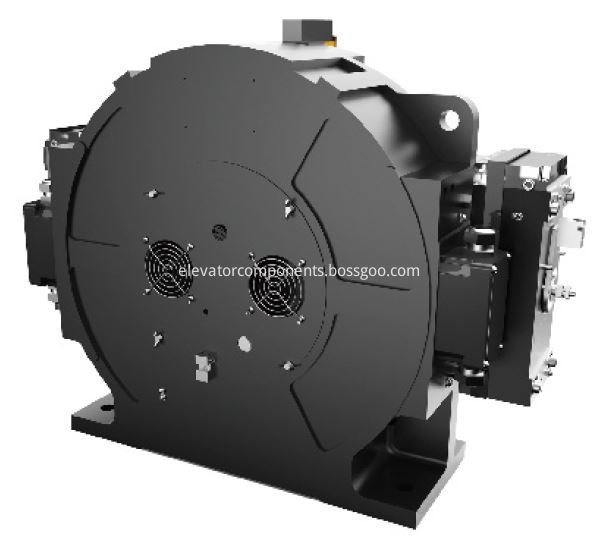

Passenger Elevator PM Gearless Machine With Rearmounted Cooling Fans

2:1 800kg 1000kg

Passenger Elevator PM Gearless Machine With Rearmounted Cooling Fans

Passenger Elevator PM Gearless Machine With Rearmounted Cooling Fans


  • Recognized as a highly reputable supplier in elevator manufacturing
  • Excellence in elevator servicing and modernization
  • Expert in providing elevator solutions to suit individual requirements
  • Offer the most versatile range of elevator globally
  • Help your building to meet the legislative requirements of the elevator operation
  • All planning, manufacturing, and testing is done in China facilities before delivery
  • Applying Japanese / British / American craftsmanship to all makes of elevator


We carry high quality Elevator PM Gearless Machine as below

Passenger Elevator PM Gearless Traction Machine 2:1 and 1:1, Panoramic Elevator PM Gearless Traction Machine 2:1 and 1:1, Home Elevator PM Gearless Traction Machine 2:1 and 1:1, Hospital Bed Elevator PM Gearless Traction Machine 2:1 and 1:1, Freight Elevator PM Gearless Traction Machine 2:1 and 1:1, Car Elevator PM Gearless Traction Machine 2:1 and 1:1, Service Elevator PM Gearless Traction Machine 2:1 and 1:1, Goods Elevator PM Gearless Traction Machine 2:1 and 1:1, MRL Elevator PM Gearless Traction Machine 2:1 and 1:1

for all major elevator and escalator brands as below

OTIS Elevators, ThyssenKrupp Elevators, Schindler Elevators, KONE Elevators, Mitsubishi Elevators, Fujitec Elevators, Hitachi Elevators, Toshiba Elevators, Fuji Elevators, Express Elevators, Sigma Elevators, LG Elevators, Hyundai Elevators, BLT Elevators, CANNY Elevators, SJEC Elevators, KOYO Elevators, IFE Elevators, Thyssen Elevators, GiantKONE Elevators, XJ Schindler Elevators, Xizi OTIS Elevators, Shanghai Mitsubishi Elevators, GUANGRI Elevators





Max. Static Load

3000kg

Weight

400kg

Duty

S5-60%ED

Insulation Class

155(F)

Brake

2*DZD1-500 | brake torque: 2*837 N.m | Current: 2*1A | Voltage: DC110V

Color

Blue | Gray | Black

Matching Inverter

Monarch | STEP | Optimax | SIEI | FUJI | YASKAWA | Emerson | Blue Light

Encoder

Machine is coming with Heidenhain ERN1387, ERN1321 & ECN1313 as TWO options

Machine Arrangement

MRL | MR

Voltage

3 Phase AC340V

Motor Poles

16

Part No.

Roping

Capacity

Speed

Motor

Traction Sheave

Power

Current

Diameter

Rope

Pitch

RGLM800-100-5R2H

2:1

800kg

1m/s

5kW

11.5A

400mm

5*ø10mm

15mm

RGLM800-175-5R2H

2:1

800kg

1.75m/s

9kW

21A

400mm

5*ø10mm

15mm

RGLM1000-100-5R2H

2:1

1000kg

1m/s

6kW

14A

400mm

5*ø10mm

15mm

RGLM1000-175-6R2H

2:1

1000kg

1.75m/s

11.7kW

28A

400mm

6*ø10mm

15mm

Diverting Pulley as an option at extra cost
