Passenger & Cargo Elevator Ventilator

Payment Type: T/T
Incoterm: CFR,CIF,EXW
Min. Order: 100 Piece/Pieces
Delivery Time: 10 Days

Basic Info

Model No.: EVF-YS-ZFB1035 Fan

EVF-YS-ZFB1035/110 Elevator Fan: 110VAC

EVF-YS-ZFB1035/230 Elevator Fan: 230VAC

Additional Info

Packaging: Export Packing Plywood Case

Brand: Powered by CEP Elevator Products

Transportation: Ocean,Land,Air,Courier Service

Place of Origin: Made in CHINA

Supply Ability: Quantity Production

Certificate: EN81, CE, Gost-R, SASO, VOC, KTL, UL, CSA

HS Code: 8431310090

Port: Ningbo,Shanghai

Product Description

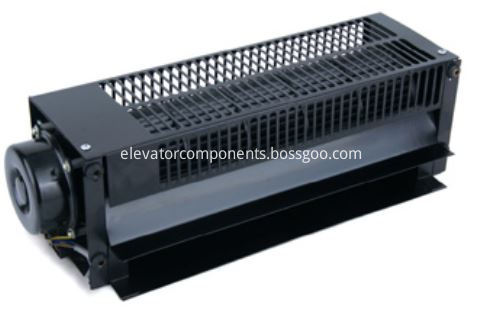

Passenger Elevator Cross Flow Fan

Passenger Elevator Ventilator

Passenger Elevator Ventilator Fan

Passenger Elevator Ventilation Fan

Passenger Elevator Ventilating Fan

Passenger Elevator Ventilation System

Passenger Elevator Axial Flow Fan

Passenger Elevator Axial Fan

Passenger Elevator Aerofoil Fan

Passenger Elevator Ventilator


Motor: Capacitor Induction

Ball Bearing: YES

Impeller: Reinforced Plastic, ø91mm*320mm

Frame: Steel with plastic-coated

Service Life: 30,000hours

Operation Temperature: -20- +50

Weight: 2.7kg


Part No.

Voltage(VAC)

Frequency(Hz)

Current(A)

Power(W)

Speed(RPM)

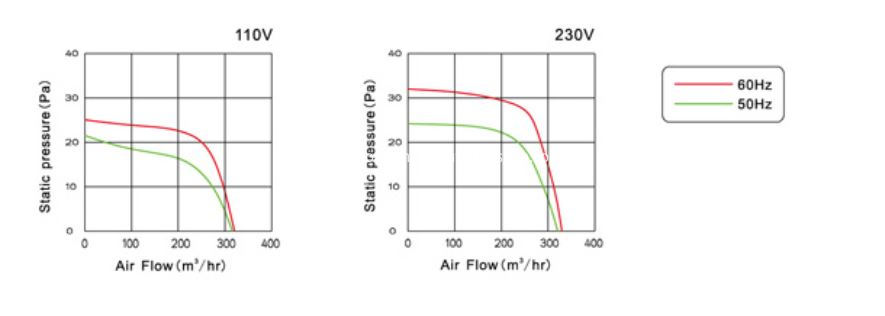

Air Flow(m3/hour)

Noise(dB)

EVF-YS-ZFB1035/110

110

50/60

0.21/0.26

23/28

1230/1260

315/320

47

EVF-YS-ZFB1035/230

230

50/60

0.11/0.14

24/30

1230/1280

315/325

47


Passenger Elevator Ventilator

Passenger Elevator Ventilator

We carry high quality Elevator Ventilating Fan
for all major elevator and escalator brands

for OTIS Elevators, ThyssenKrupp Elevators, Schindler Elevators, KONE Elevators, Mitsubishi Elevators, Fujitec Elevators, Hitachi Elevators, Toshiba Elevators, Fuji Elevators, Express Elevators, Sigma Elevators, LG Elevators, Hyundai Elevators, BLT Elevators, CANNY Elevators, SJEC Elevators, KOYO Elevators, IFE Elevators
